Precision. Intelligence. The Future of Industrial Printing.

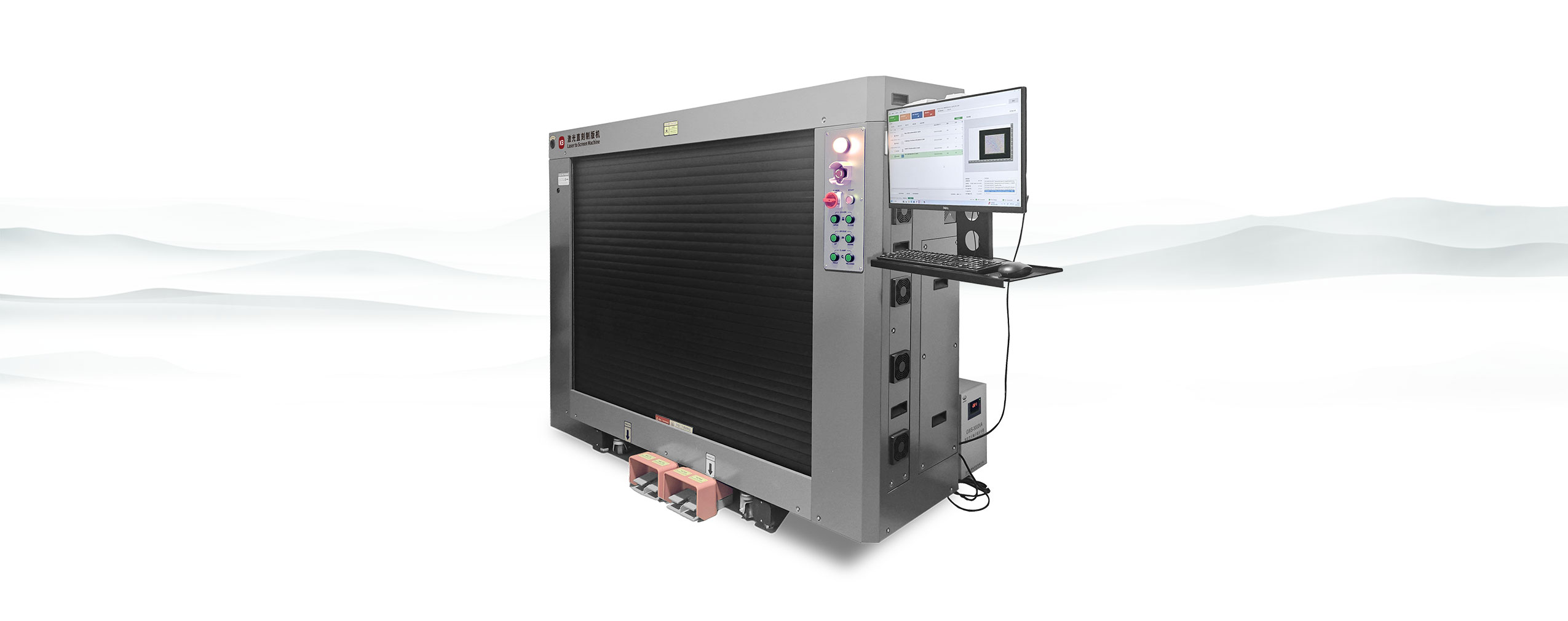

CTS-8012M is a vertical laser direct engraving machine, designed for screen printing plate-making in multiple industries. It takes high precision, high efficiency and high speed as its core advantages, and is suitable for garment printing, packaging printing, label printing, PCB,
optoelectronics and other fields.
The maximum exposure area is 800mm×1200mm, meeting the plate-making needs of larger-size screens.
It supports 133LPI screening lines, with a maximum resolution of 2540dpi, ensuring the fineness of plate-making quality.
The maximum scanning speed can reach 3m/s, and the single exposure time is less than 2.5 minutes, greatly improving production efficiency.
Adopting 120-channel fiber laser module, supporting 120-level adjustable exposure power and real-time focusing, with a maximum focal depth of 4mm, ensuring reliable exposure every time.
It supports file formats such as TIFF, Gerber, DXF and BMP, and is compatible with various screen printing photosensitive emulsions and photosensitive films, meeting diversified needs.
Equipped with automatic alignment and self-inspection calibration functions;
It can monitor laser power and scanning accuracy in real time;
Ensuring the consistency and stability of plate-making during long-term operation.
| Item | Parameter Description |
| Equipment Dimensions | 2285 x 685 x 1690 mm |
| Shipping Box Dimensions | 2800 x 1000 x 2084 mm |
| Net Weight | 925 kg |
| Gross Weight (Packaged) | 1190 kg |
| Performance Exposure | |
| Maximum Exposure Area | 800 x 1200 mm |
| Maximum Frame Area | 1100 x 1700 mm |
| Screen Fixing Method | Pneumatic Clamping (Vertical) |
| Laser Parameters | |
| Exposure Light Source | Semiconductor Laser (128-channel Module) |
| Rated Power | 800 W |
| Noise Level | ≤70 dB |
| Compatibility | |
| Supported File Formats | TIFF,Gerber,DXF,BMP,etc. |
| Interface Type | USB 2.0/3.0 |
| Applicable Photosensitive Materials | Various common screen printing photosensitive emulsions and photosensitive films (maximum thickness 1000μm) |
Garment printing: High-precision plate output, with supporting equipment design.
Packaging printing: Fast plate-making to improve batch production efficiency.
Label printing: Fine line and small text clarity realization.
PCB/Optoelectronics: High-resolution exposure to meet the requirements of precision electronic components.
